3G/4G/5G
data connectivity |
It provides data connectivity on 5G NR SA and NSA, LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA networks.
|
|
|
3G/4G/5G
Frequency bands |
• Version E
5G NR: 5G NSA：n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n48/n77/n78/n79 5G SA：n1/n3/n5/n7/n8/n20/n26/n28/n38/n40/n41/n48/n77/n78/n79 LTE FDD：B1/B3/B5/B7/B8/B18/B19/B20/B26/B28/B32 LTE-TDD：B38/B39/B40/B41/B42/B43/B46*/B48 WCDMA: B1/B5/B8 |
• Version A
5G NR: 5G NSA：n2/n5/n7/n12/n14/n25/n26/n30/n38/n41/n48/n66/n71/n77/n78/n79 5G SA：n2/n5/n7/n12/n13/n14/n25/n26/n29/n30/n38/n41/n48/n66/n71/n77/n78/n79 LTE FDD：B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29/B30/B66/B71 LTE-TDD：B38/B41/B42/B43/B46*/B48 WCDMA: B1/B2/B4/B5 |
|
Antennas
|
4 * 4G/5G internal antenna,4*4 MIMO, with 50 Ω impedance
|
|
|
CPU
|
Qualcomm SDX62, ARM Cortex - A7,1.8GHz
|
|
|
MEMORY
|
NAND FLASH 4Gb, LPDDR4X 4Gb
|
|
|
Hardware interface
|

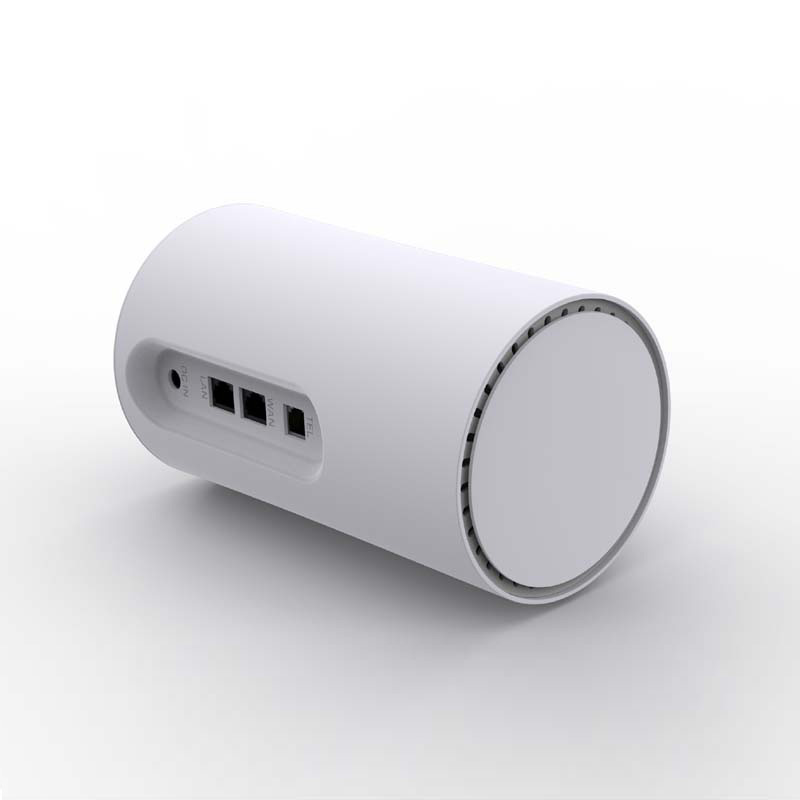

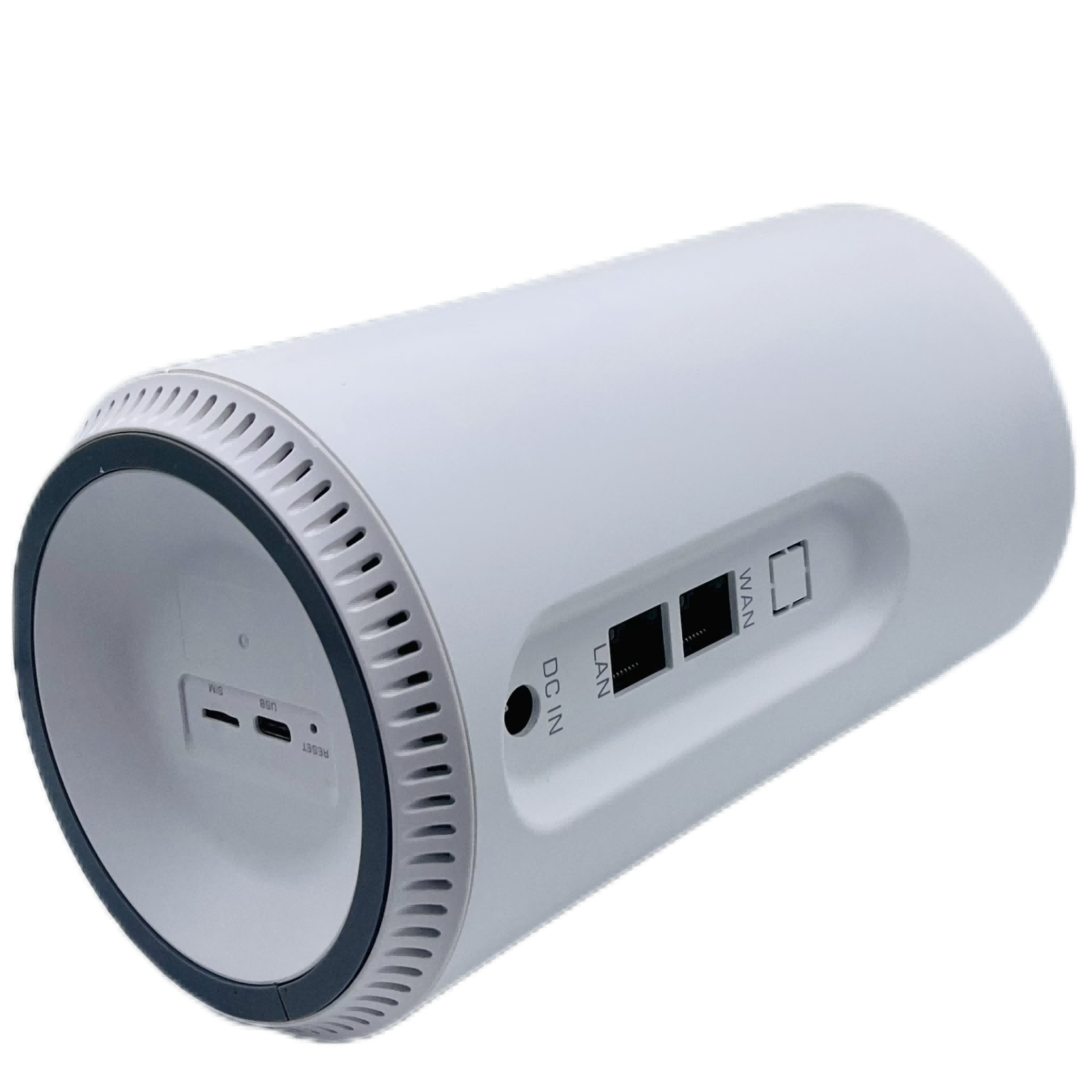

2* LAN gigabit Ethernet ports. 1*USB3.1 port,1*RJ11 VOLTE (Optional)
|
|
|
Key button
|
Reset, WPS
|
|
|
Protection level
|
Ethernet port , Contact electric shock, +/-4KV, air discharge: +/-8KV
|
|
|
LED status indicator
|
Power, 5G, WIFI
|
|
|
Power Supply
|
Power supply input. DC 12V/1.5A
|
|
|
Temperature
|
Operating Temperature 0 ºC ~+50ºC, Storage Temperature -10~+55ºC
|
|
|
WLAN
|
◆ IEEE 802.11 a/b/g/n/ac/ax, AX1800 wifi 6 . Max bandwidth 1800Mbps
◆ Supports 2.4G/5GHz WIFI 6. Supports BT5.2 ◆ Supports Dynamic Frequency Selection (DFS, radar detection). ◆ Supports 20 MHz/40 MHz channel bandwidth for 2.4 GHz and 20 MHz/40 MHz/80 MHz/160 MHz channel bandwidth for 5 GHz. ◆ Supports 2x2 Multi-User Multiple-Input Multiple-Output (MU-MIMO). |
|
|
Wireless Security
|
Supports WPA, WPA3,WPAI, WEP, TKIP encryption
|
|
|
WIFI hotspot sharing
|
Supports more than 32 users to share WIFI access to the Internet.
|
|
|
Protocol
|
Supports PPTP,L2TP,IPSEC VPN,GRE,TCP,UDP,DHCP,HTTP,DDNS,TR-069,HTTPS,SSH etc protocol
|
|
|
Embedded system
|
OpenWRT 19.07
|
|
|
VPN Feature
|
Supports Open VPN, IPSEC VPN,PPTP,L2TP etc VPN feature
|
|
|
Web GUI
|
HTTP, Firmware Upgrade
|
|
|
Firmware update
|
Supports local WebUI and remote OTA update firmware
|
|
|
System Assurance
|
Supports system automatic detection mechanism, automatic recovery of system abnormality or crash.
|
|
|
Multiple APN
|
Supports multiple APN access network
|
|
